Engineering · Industrial Valves

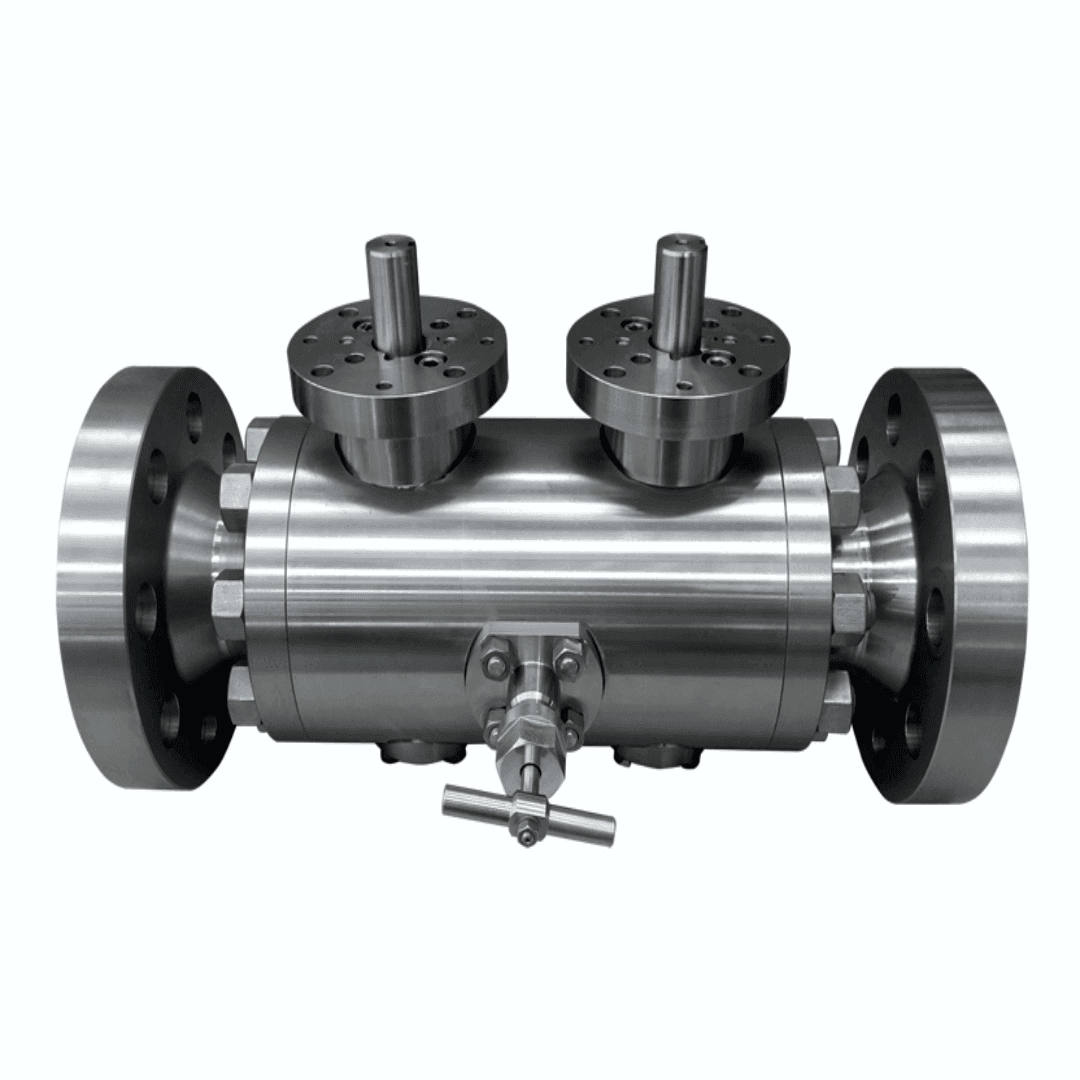

DOUBLE BALL BLOCK & BLEED VALVE
Floating side entry ball valve: Full Bore / Reduced Bore
Overview
Combines double block and bleed functionality in a single compact body for safe isolation and pressure venting in oil & gas pipelines.
- Size Range
- 2" to 24"
- Pressure Class
- 150, 300, 600, 900, 1500, 2500
- Pressure & Temp. Rating
- ASME B16.34
- End Connections
- Raised Face (RF), Ring-Type Joint (RTJ), Custom options
- Operator / Actuator
- Manual Lever, Gear
Materials
Built for the service.
Carbon Steel, Stainless Steel, DSS, SDSS & Alloy Steel
Standards & Certifications
Compliant by design.
API 6D / BS EN ISO 17292
Design standard
API 598
Inspection & testing
API 607
Fire safe
ASME B16.5
End connection
SRE Standard
Face to face
