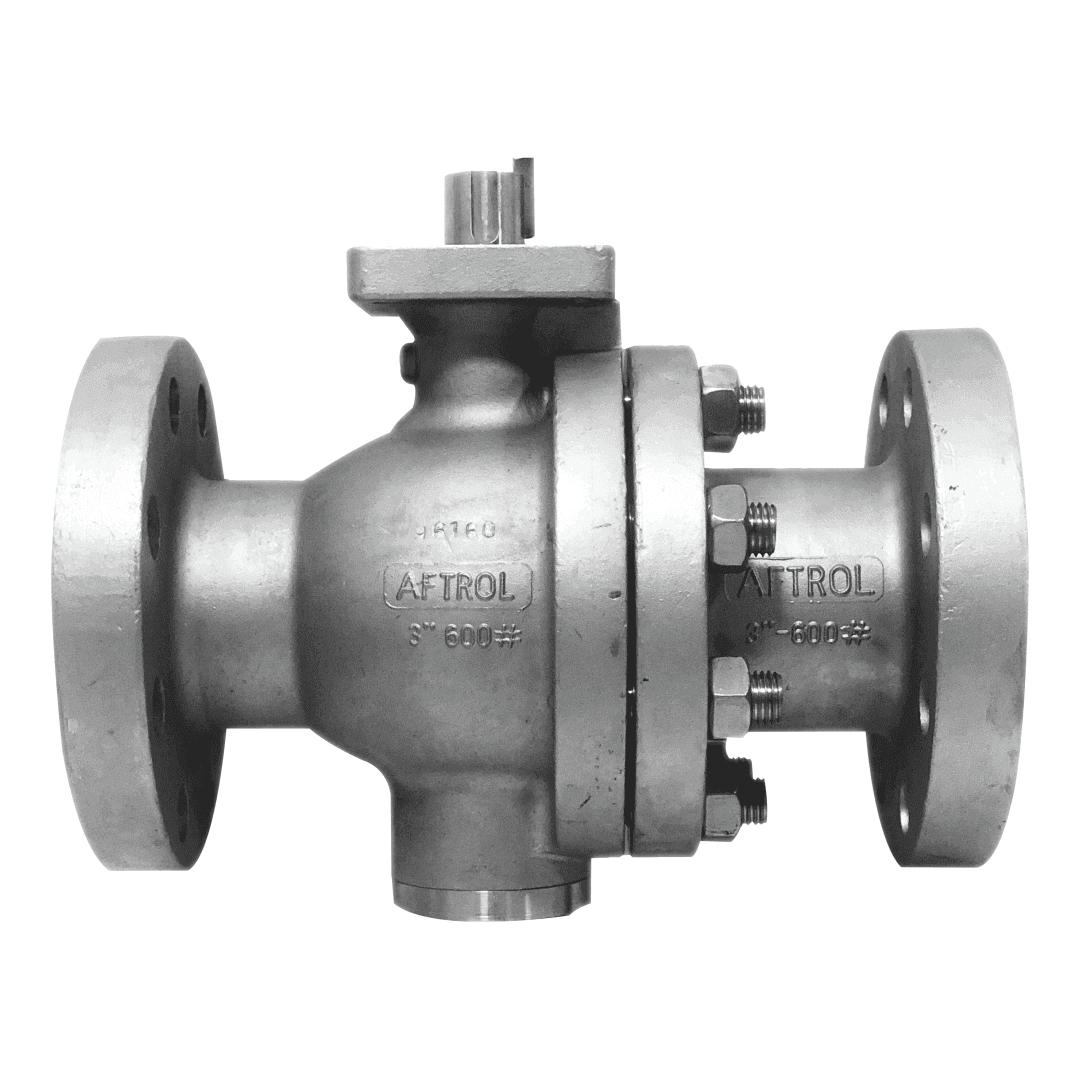

TRUNNION SIDE ENTRY BALL VALVE
Full Bore / Reduced Bore
Overview
Side entry trunnion-mounted ball valve for high-pressure, high-temperature service in refineries and hydrocarbon plants.
- Size Range
- 3" to 24"
- Pressure Class
- 600
- Pressure & Temp. Rating
- ASME B16.34
- End Connections
- Raised Face (RF), Ring-Type Joint (RTJ), Butt-Weld (BW)
- Operator / Actuator
- Lever, Gear, Pneumatic, Electric actuator
Materials
Built for the service.
Carbon Steel, Stainless Steel, DSS, SDSS & Alloy Steel
Standards & Certifications
Compliant by design.
API 6D
Pipeline valves
API 598
Inspection & testing
API 607
Fire safe
BS EN ISO 17292
Design standard
EN 12266-1
Testing
ASME B16.5
End connection
ASME B16.10
Face to face
